Installation for all '10+ Road Glide models requires no modification. It's a direct bolt on for easy installation.
For ‘03-'09 FLTR models you will need to raise the front touring fairing 7/8 of an inch and tilt the nose down 2 degrees by installing the 2010 or new Road Glide fairing mount and requires the following parts:
P/N 58454-10 Mount, LH/Fairing Lower
P/N 58460-10 Mount, RH/Fairing Lower
P/N 58530-10 MTG BRACKET - Center main fairing bracket.

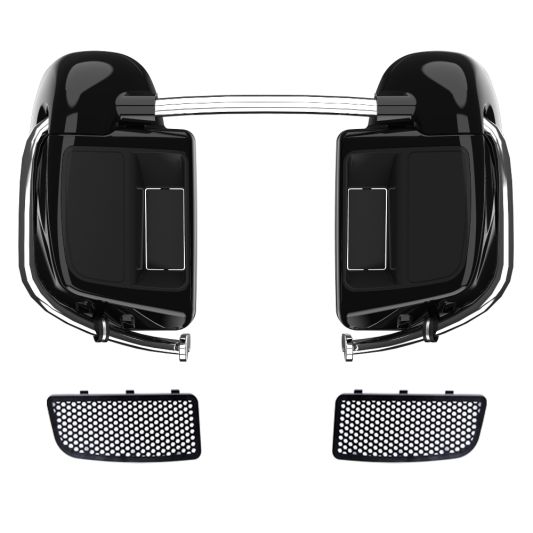

The lower upper fairing mounts that bolt to the engine guard are angled in to allow the vented lowers to now fit.
The fairings weigh approximately 12.4 lbs with packaging.
2. I have a 2012 FLHX with a factory engine guard. Are these lowers compatible, or do I need a different guard?
Yes, the 2014-style lower fairings will fit your 2012 FLHX as long as you have the factory full-size crash bar.
3. Will this fit a 2023 Street Glide FLHX with the OEM crash bar?
Yes, it will fit the OEM full-size crash bar.
4. Will these lowers work with the Custom Dynamics lower fairing light kit?
Yes, they are compatible with Custom Dynamics lower fairing LED lights.
5. Will these work with highway pegs?
Yes, the lower fairings are designed to work with highway pegs.
6. It says for 2014 and up. Will they fit a 2009 Street Glide? Are they a different size than the older style?
Yes, these lower fairings will work on a 2009 Street Glide if you have a full-sized OEM crash bar.
7. Can I install Harley-Davidson Rockford Fosgate Stage Two lower speakers in these fairings?
Yes, our speaker pods are designed to fit Rockford Stage Two speakers.
8. Can I use my Harley-Davidson Heavy Breather air intake with these?
No, heavy breather and cone-style air intakes will interfere with the fairing fitment. We recommend using a standard air cleaner setup.
9. Are the vent openings adjustable?
Yes, the fairings come with adjustable slider vents that allow you to control airflow for comfort in various weather conditions.
10. What finish options are available?
We offer color-matched finishes to match most OEM Harley-Davidson paint codes for a seamless, factory-style look.
11. Will these fairings improve riding comfort or heat management?
Yes, they offer wind and debris protection while helping direct engine heat away from your legs—ideal for long-distance rides or hot climates.
12. Do I need professional installation?
Not necessarily. Most customers can install these using basic hand tools. However, if you’re unfamiliar with fairing installation, a professional install is recommended.
